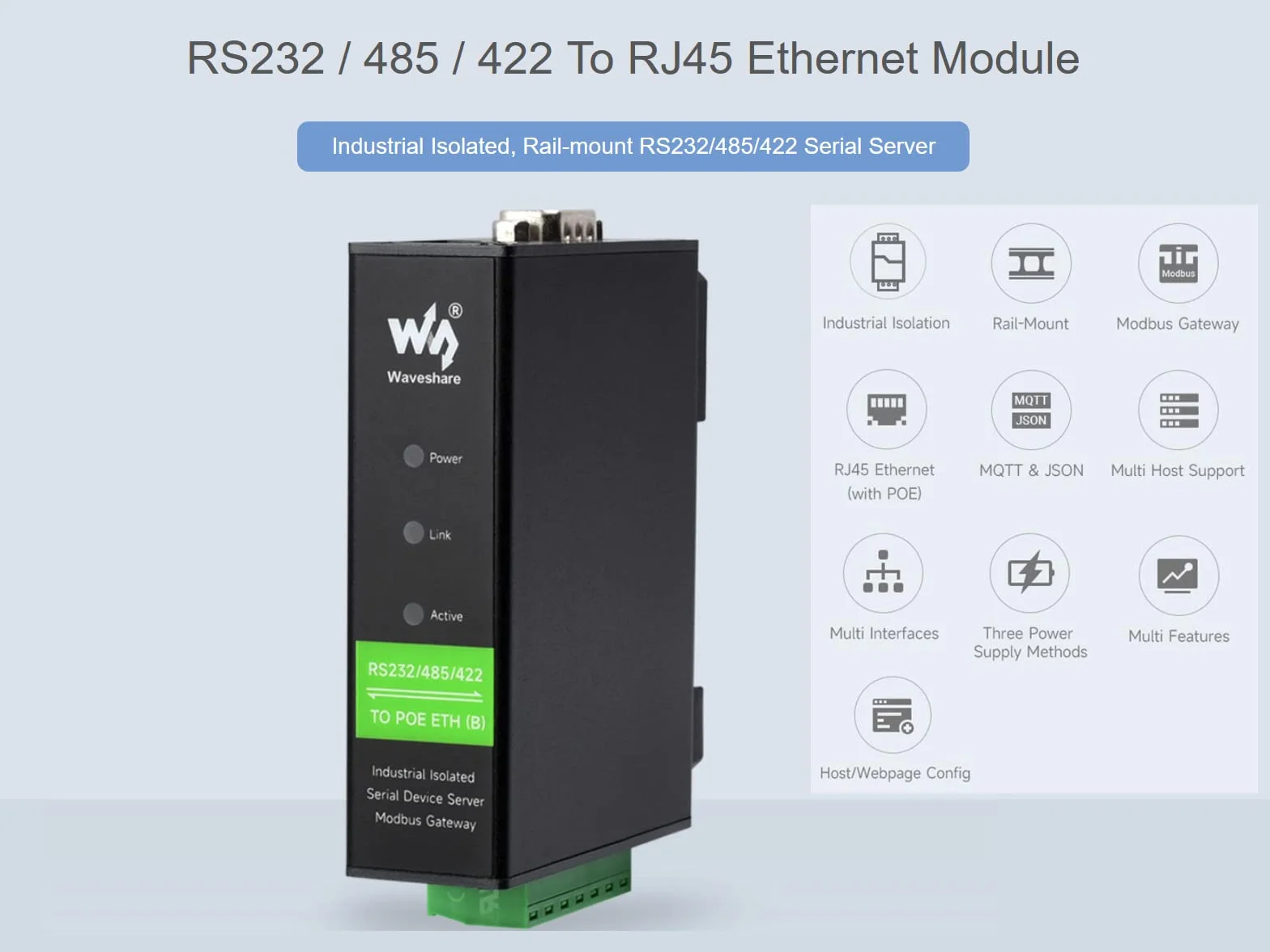

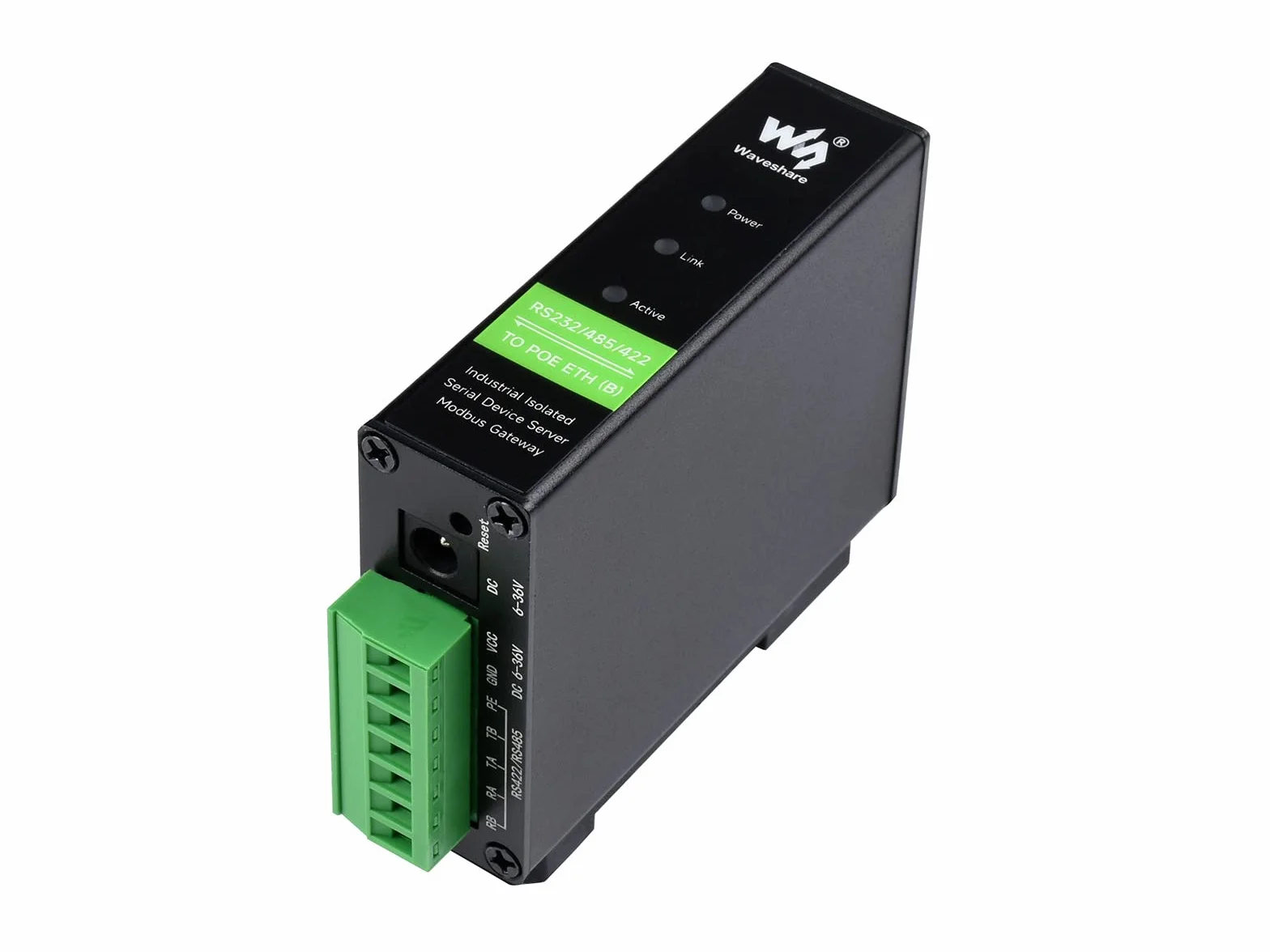

Convertisseur RS232/485/422 vers RJ45 Ethernet Modbus Gateway Serveur Série Industriel Isolé avec POE

Marque: Waveshare
Socket du CPU: Socket 370
Appareils compatibles: Ordinateur personnel
Technologie de mémoire RAM: DDR4
Processeurs compatibles: Intel Pentium
Type de chipset: Intel 8xx ou Intel 9xx
Plateforme: Navigateur Web
Nom de modèle: RS232/485/422 To POE ETH Converter
Modèle du CPU: Pentium
Type de connecteur d'alimentation principal: DC power port

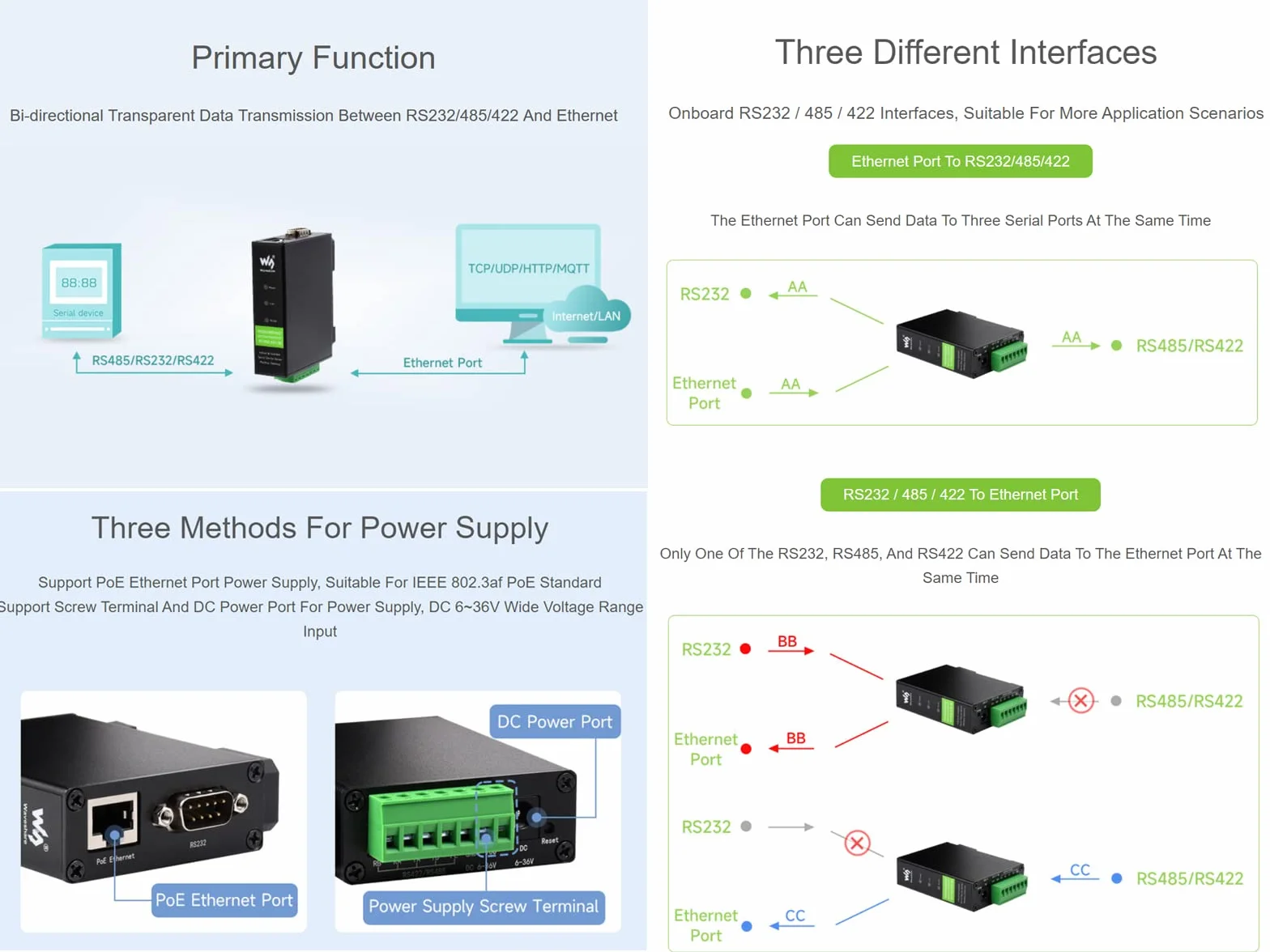

- RS232/485/422 to RJ45 Ethernet Module with POE function, onboard RS232 / 485 / 422 three different interfaces, bi-directional transparent data transmission between RS232/485/422 and Ethernet, suitable for more application scenarios

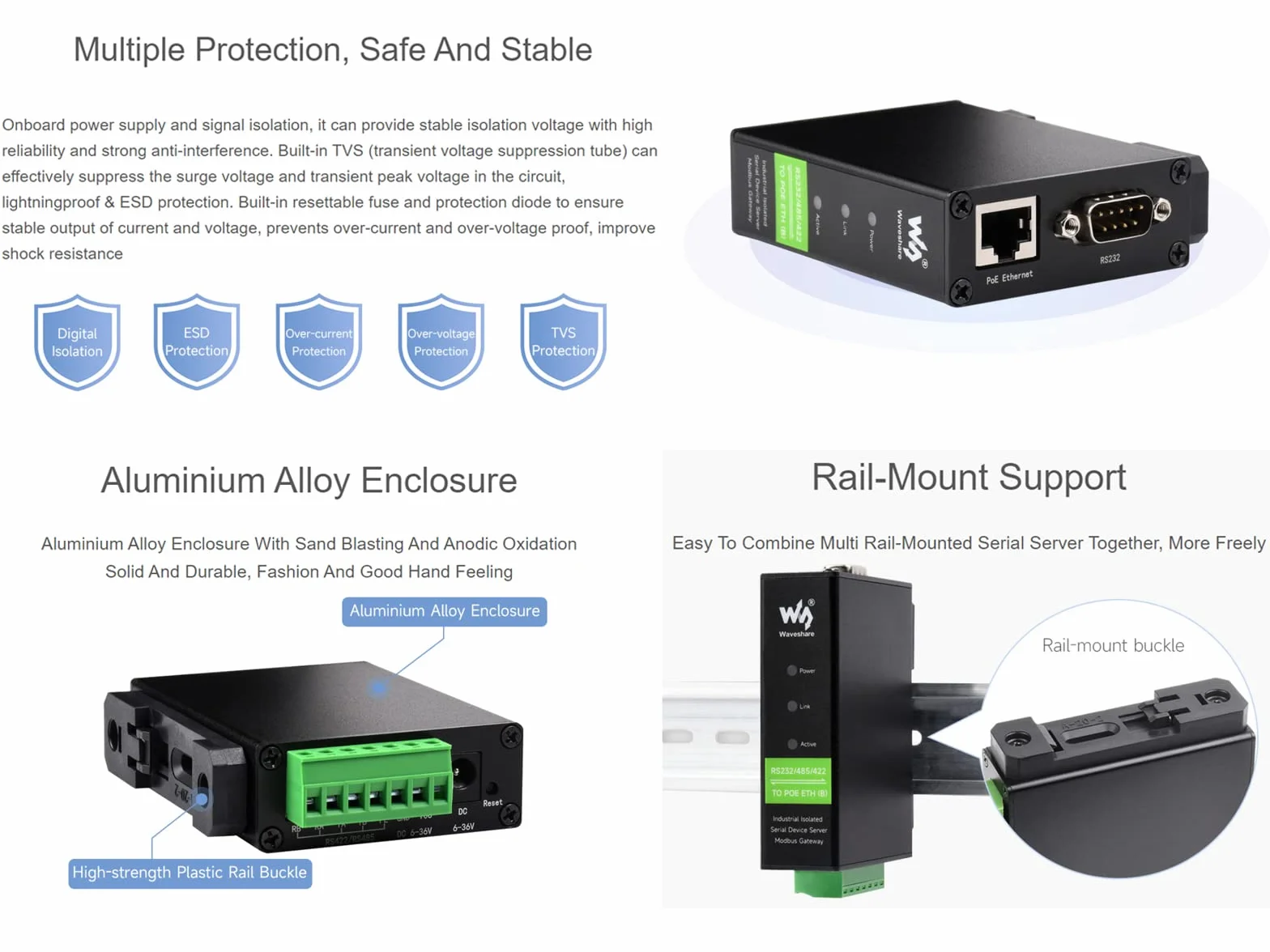

- Industrial isolated rail-mount RS232/485/422 serial server, support PoE Ethernet port power supply, suitable for IEEE 802.3af PoE standard, support screw terminal and DC power port for power supply, DC 6~36V wide voltage range input

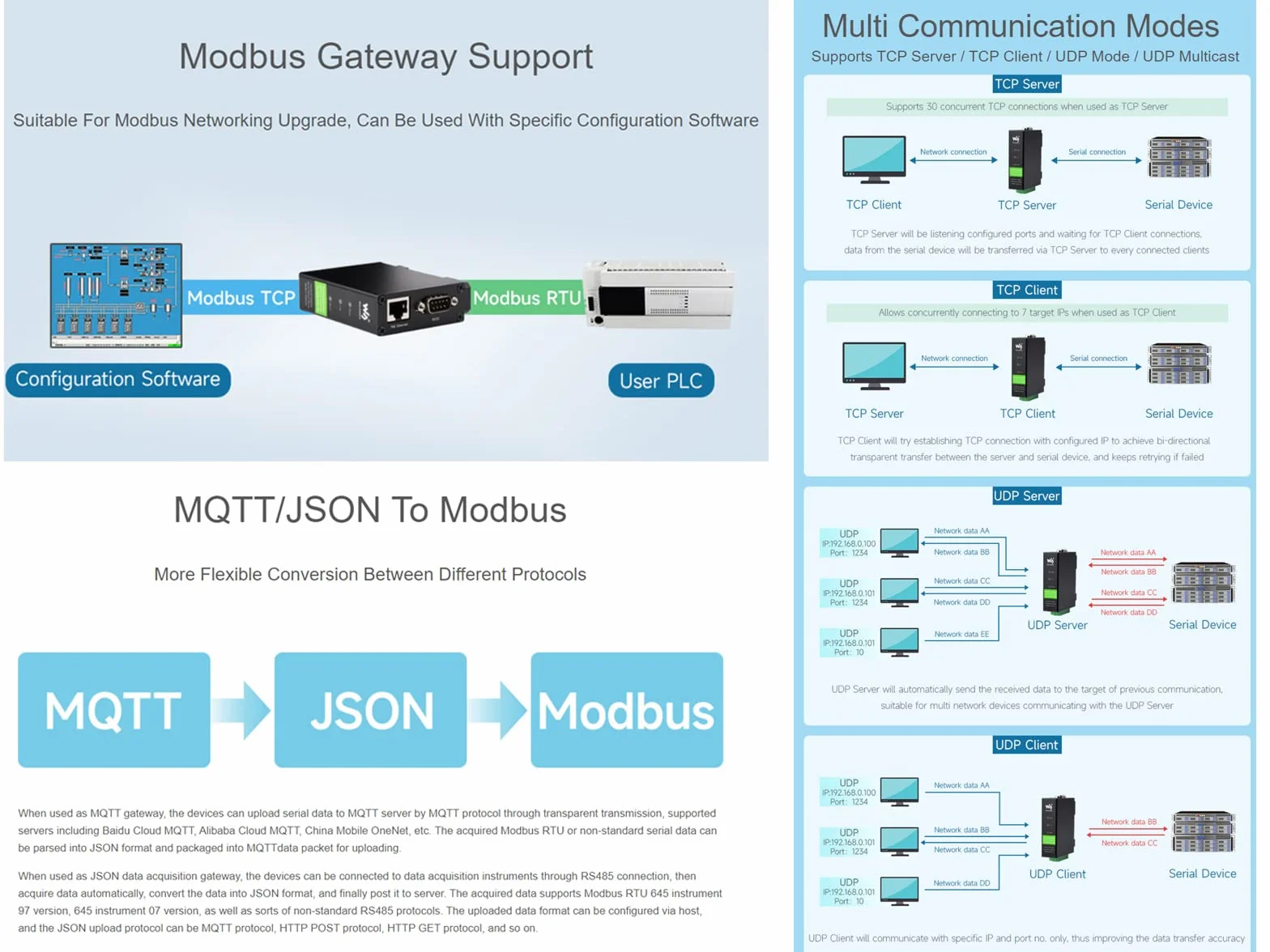

- Support Modbus Gateway, suitable for Modbus networking upgrade, can be used with specific configuration software
- Supports TCP Server / TCP Client / UDP Mode / UDP Multicast multi communication modes, MQTT/JSON to Modbus, more flexible conversion between different protocols

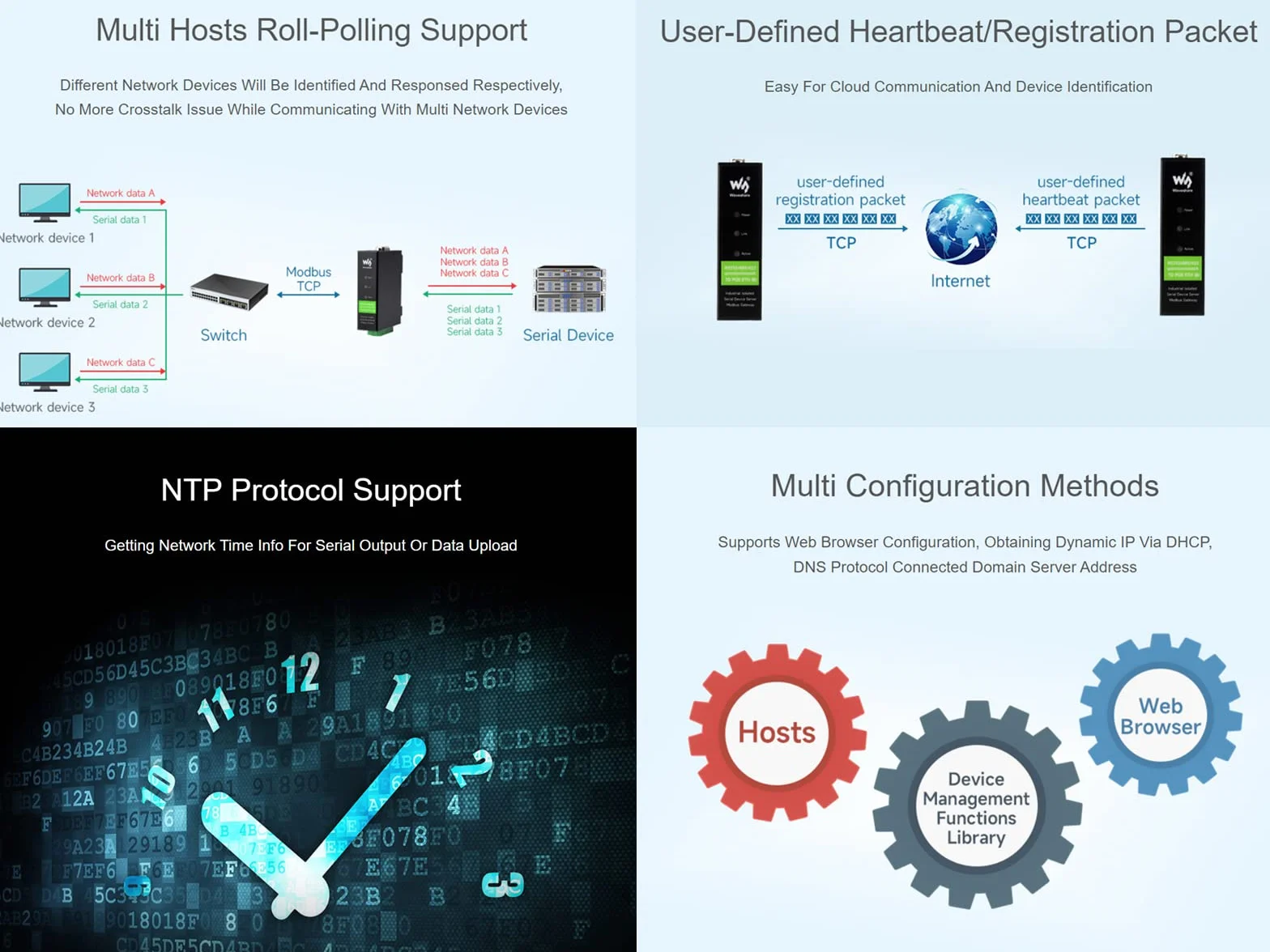

- Support Multi Hosts Roll-Polling, User-Defined Heartbeat/Registration Packet, NTP Protocol Support, Multi Configuration Methods
