Waveshare FT232RNL USB to RS232/485/422/TTL Interface Converter Industrial Isolation

Appareils compatibles: Appareils industriels, équipements d'automatisation, automates, systèmes SCADA, microcontrôleurs, ordinateurs monocarteVoir plus
Usages spécifiques pour le produit: Ordinateur, Industriels
Type de connecteur: USB Type B, RS232
Marque: Waveshare
Nombre de ports: 1
Quantité d'articles dans le colis: 1
Type de prise d'alimentation: Aucune prise
Nombre d'unités: 1.0 unité
Compatibilité maison intelligente: Non compatible maison connectée
Fabricant: Waveshare

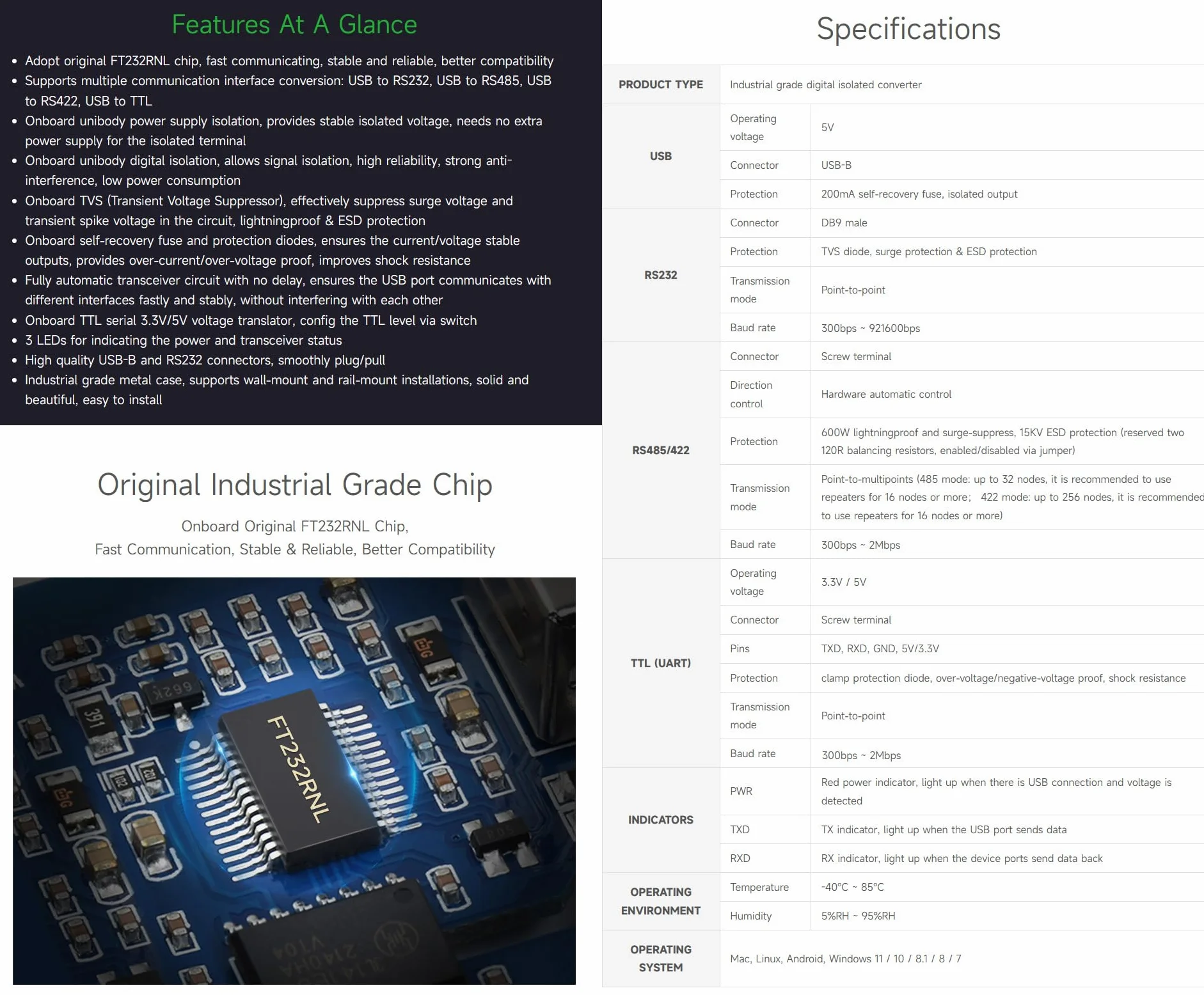

- Adopt original FT232RNL chip, fast communicating, stable and reliable, better compatibility. Supports multiple communication interface conversion: USB to RS232, USB to RS485, USB to RS422, USB to TTL

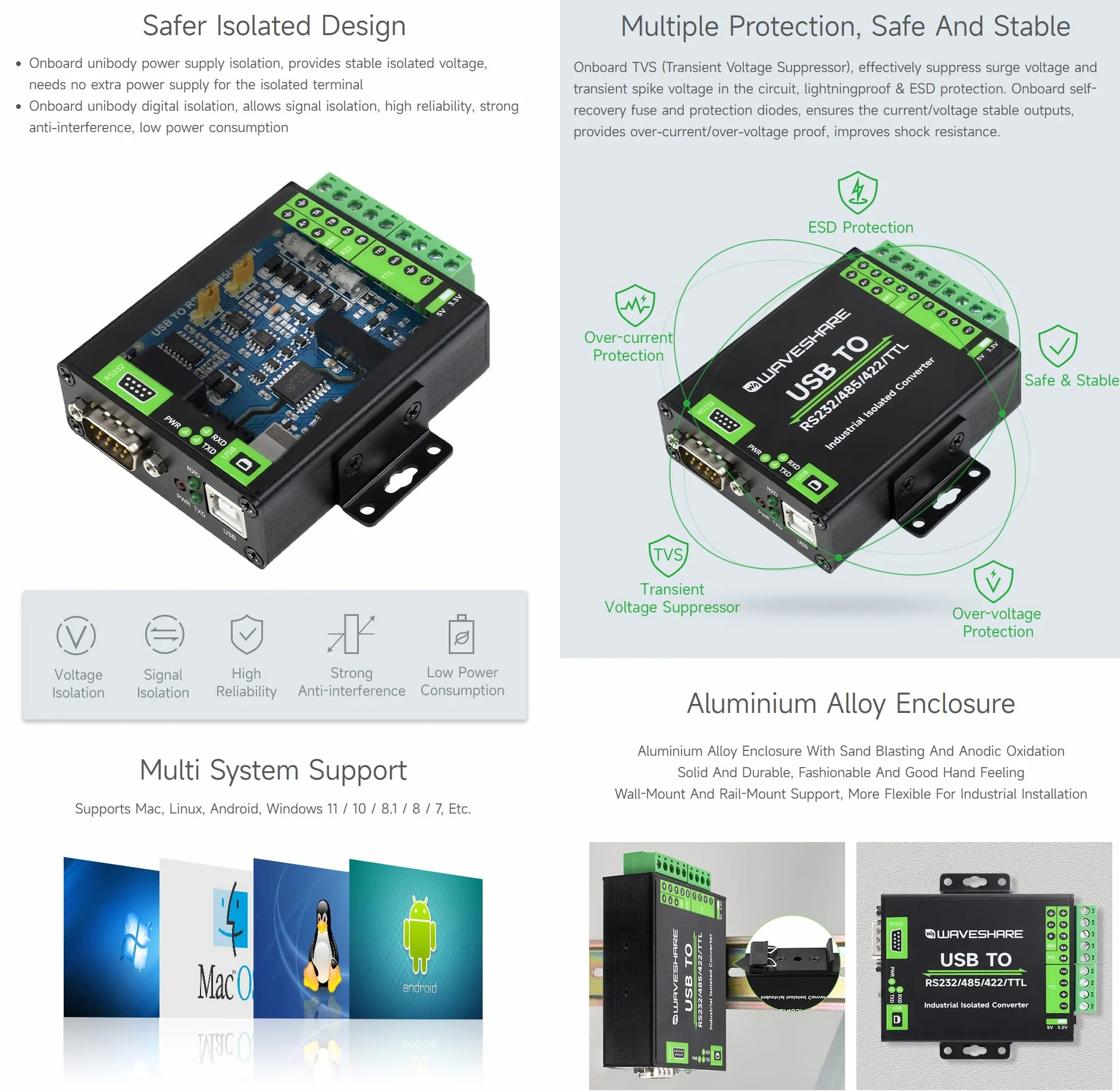

- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard Transient Voltage Suppressor, effectively suppress surge voltage and transient spike voltage in the circuit, llghhtningproof&ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock resistance
- Fully automatic transceiver circuit with no delay, ensures the USB port communicates with different interfaces fastly and stably, without interfering with each other. Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch
- 3 LEDs for indicating the power and transceiver status. High quality USB-B and RS232 connectors, smoothly plug/pull. Industrial grade metal case, supports wall-mount and rail-mount installations, solid and beautiful, easy to install. Provide online usage manual, pls refer to while using
